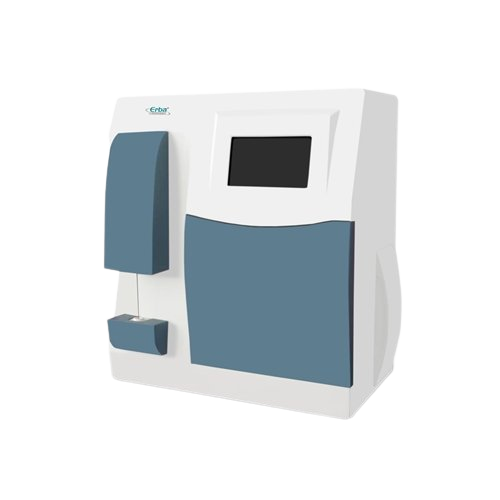

Automated Electrolyte Analyzer ERBA Lyte Plus

Model: Erba Lyte Plus
Brand: Erba
Origin: Germany

The Erba Lyte series of electrolyte analyzers are automated, microprocessor controlled analytic analyzers that use ISE (Ion Selective Electrode) technology for the measurement of ions – potassium (K), sodium (Na), chloride (Cl), calcium (Ca), lithium (Li), pH and HCO3- (CO2) in human body fluids.

The analyzer consists of electrochemical sensors, pressure sensors, microprocessor systems, control systems, auto sampling systems, auto washing systems and reagent kits including standard A, standard B, and other standards, where required.

Technical Specification

Principle: Direct measurement by Ion-Selective Electrode (ISE)
Throughput: 60 samples / hour
Sample type: Whole Blood, Serum, Plasma, Diluted Urine
Sample volume: 150 ul
Calibration: 1 point or 2 point calibration at adjustable time interval
Data input: Touch screen
Display: Large LCD with back light
Data storage: Up to 200 patient results
Printer: Built-in thermal printer
Quality control: Facility to run 2 levels of QC statistic report with Mean, SD and CV% for daily or monthly QC
Reagents: Closed reagent module containing calibration solutions and waste chamber
Audible and visual: Beep sound for completion of sample aspiration
Alarms: Visual alarms for reagent inventory: @ icon indicates the remaining reagents can run about 150 samples @ icon indicates the remaining reagents can run about 20 samples @ icon indicates the remaining reagents are run out
Communication: RS 232 serial port
Ambient temp.: 15 – 32 0 C
Relative humidity: ≤ 85%
Voltage input: AC 220 or 110 V +- 10%, 50/60 Hz
Power consum.: 60 W
Weight: 10 kg (instrument only)
accessories: Auto Sampler, barcode reader

Measuring Range

Analyte	Measuring range	Precision (CV%)
K+	0.50 – 15.0 mmol/L	≤ 1.0%
Na +	30.0 – 200.0 mmol/L	≤ 1.0%
Cl	30.0 – 200.0 mmol/L	≤ 1.0%
Ca++	0.10 – 5.00 mmol/L	≤ 2.0%
Li +	0.20 – 3.00 mmol/L	≤ 3.0%
pH	4.00 – 9.00 unit	≤ 1.0%
